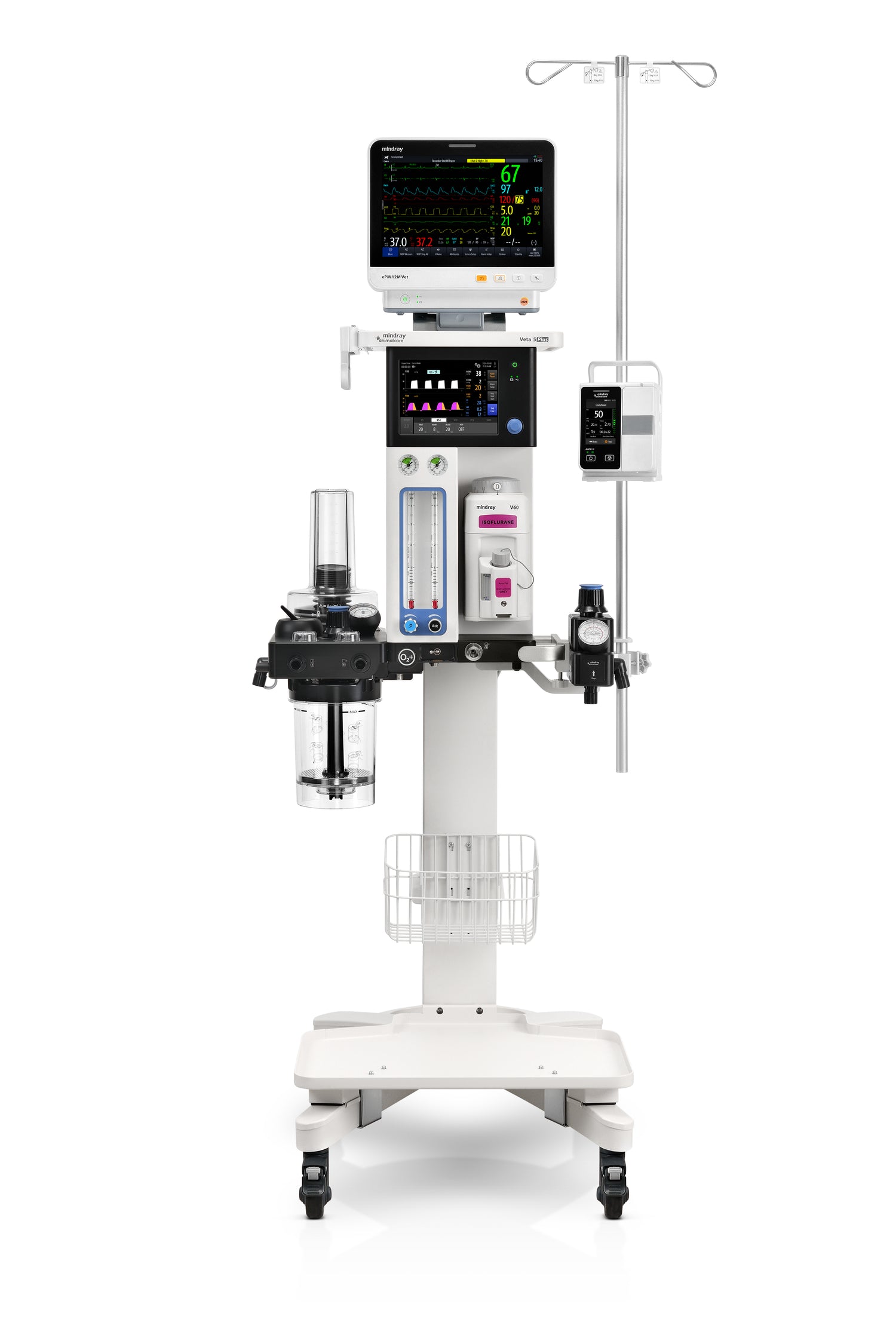

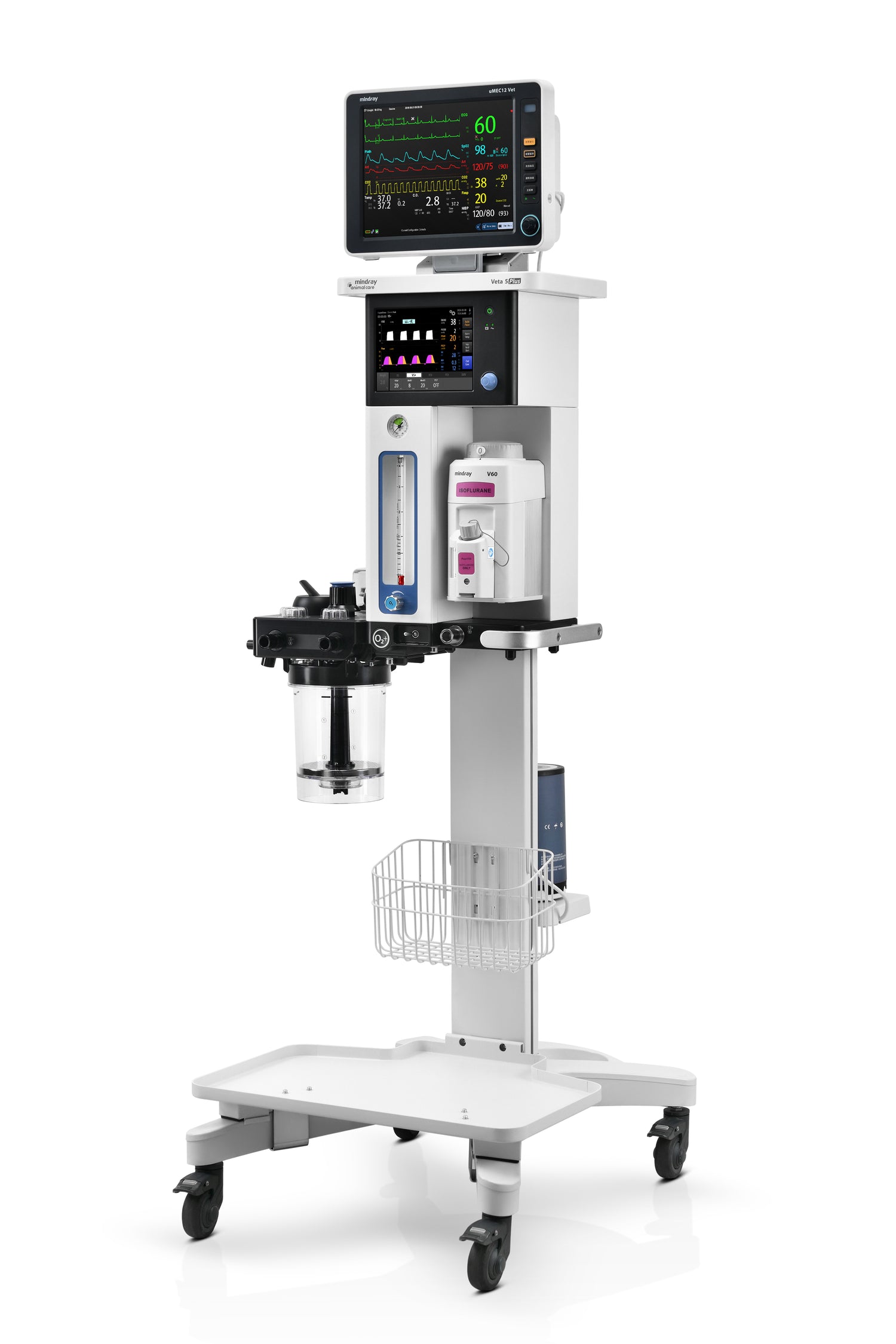

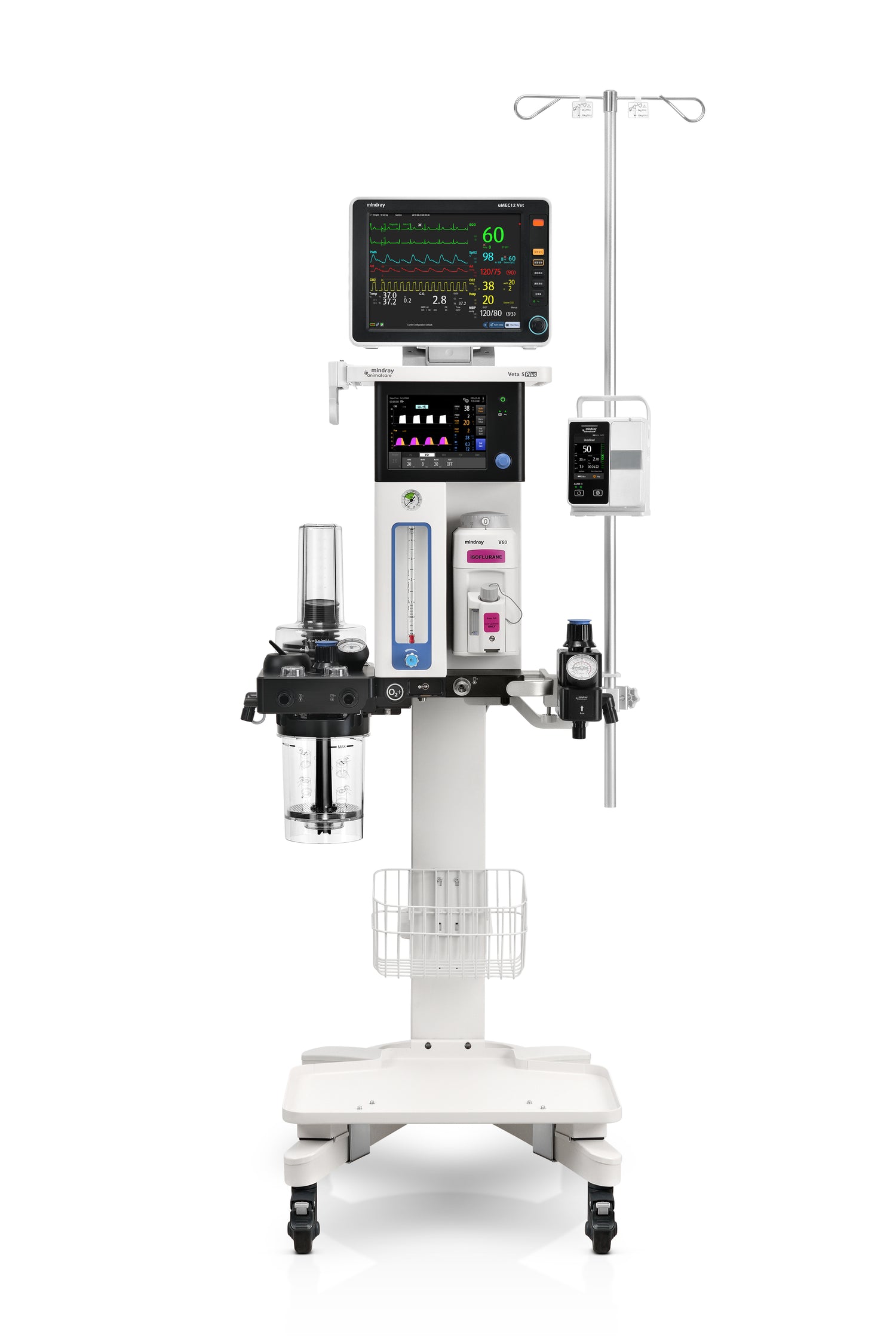

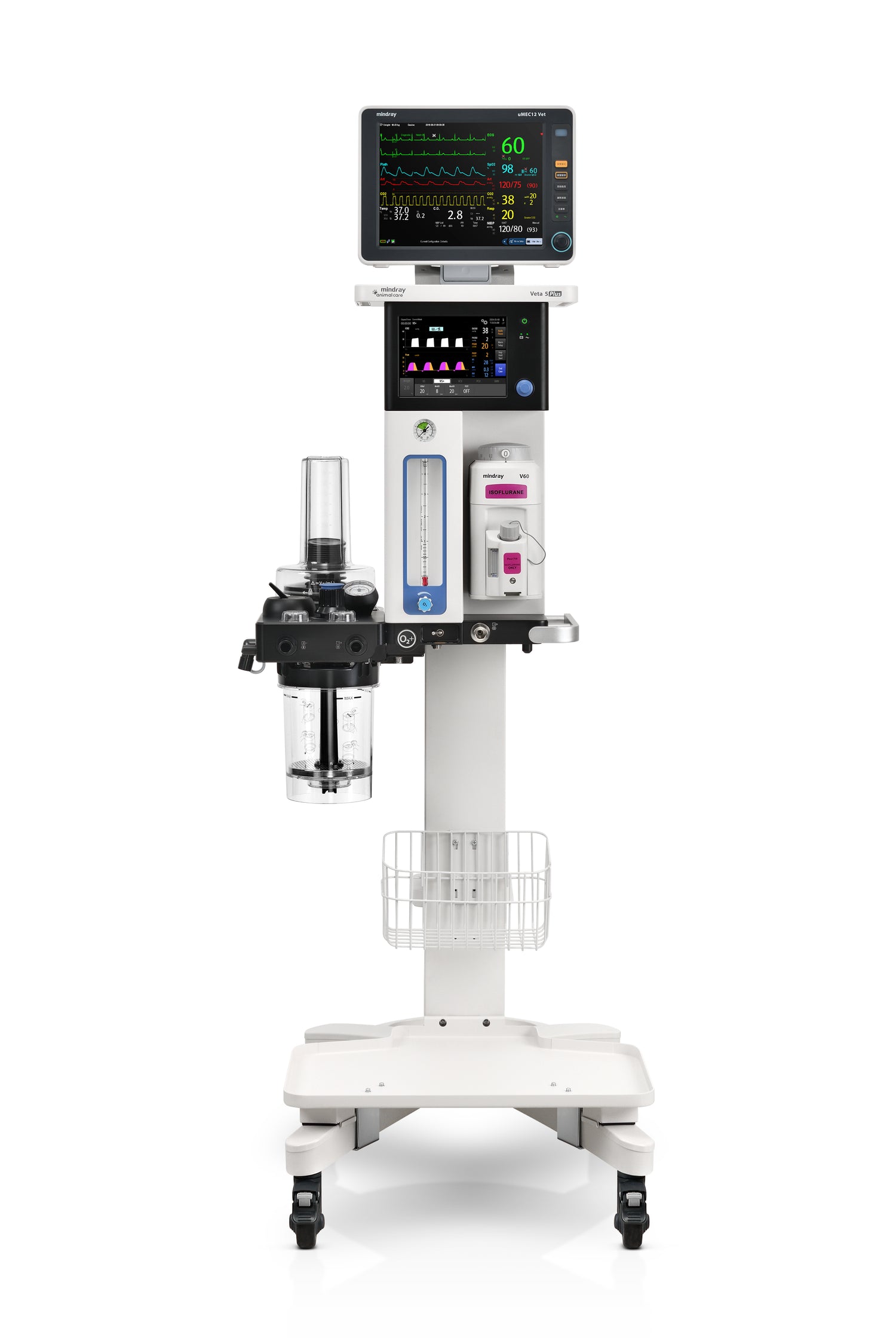

Mindray Animal Veta 5 Plus Professional Key Fill Anaesthesia Machine

The Mindray Veta 5 Plus is a next-generation veterinary anaesthesia machine designed to elevate safety, precision and confidence in clinical anaesthesia. Bringing together advanced ventilation control, intelligent synchronisation and real-time responsiveness, the Veta 5 Plus introduces VS+ active safety technology, enabling dynamic, data-driven adjustments throughout anaesthesia. With boundary-breaking connectivity to patient monitors and an intuitive design built for everyday clinical efficiency, the Veta 5 Plus delivers a modern, intelligent anaesthesia experience.

VS+ – A New Era of Active Safety

The Veta 5 Plus integrates VS+, an advanced ventilation strategy developed from well-tested clinical patterns and guided by real-time patient data. It ensures intelligent, active adjustments that support a safer anaesthesia process.

Target EtCO₂ Control - The system continuously tracks the patient’s EtCO₂ and adjusts mechanical ventilation parameters accordingly. This helps maintain target levels and respond rapidly when EtCO₂ begins to deviate.

Active Ventilation Adjustment - Mechanical ventilation parameters are automatically corrected based on EtCO₂ readings, supporting stable respiratory performance throughout anaesthesia.

Instant Response - Synchronised adjustments occur in real time, helping clinicians respond immediately to changes in the patient’s condition.

Ensuring Active Safety - VS+ provides gradual adjustment when EtCO₂ exceeds set ranges, multiple safety safeguards for volume, pressure and frequency, and highest-level alarms when intervention is required.

Connectivity – The Anaesthesia Super Hub

The Veta 5 Plus enables seamless data interconnection between anaesthesia machines and patient monitors. It can directly read EtCO₂ values from the monitor and apply the VS+ ventilation strategy automatically. This level of integration creates an intelligent anaesthesia workflow centred on real-time patient data.

Ventilation Safety & Performance

Breathing Synchronisation - An intelligent trigger reduces respiratory resistance and supports smoother patient synchronisation during ventilation.

Backup Ventilation - Automatic backup ventilation helps prevent hypoventilation and maintains patient safety if spontaneous breathing becomes inadequate.

Smart Pre-set - Mechanical ventilation parameters automatically adjust based on patient weight, streamlining setup and supporting consistent ventilation performance.

Innovative Usability for Enhanced Safety

Drive Gas Free - The system is electronically driven by a high-performance turbine, eliminating the need for drive gas.

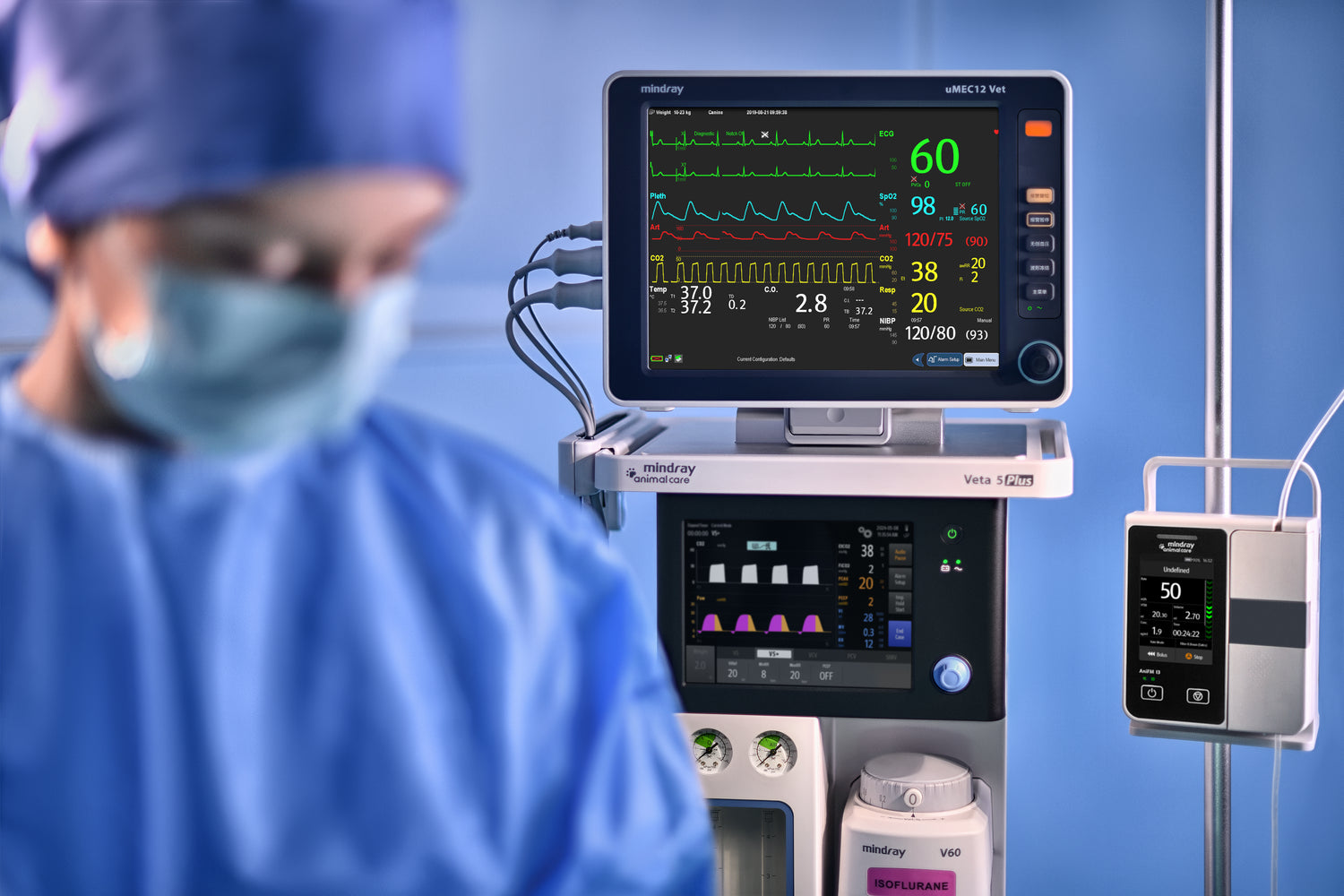

8-Inch Capacitive Touch Screen - The touchscreen provides intuitive operation and efficient interaction, with clear, responsive controls for ventilation management.

Automatic Leak Test - Graphical guidance and one-click operation allow quick and reliable system checks before use.

Inspiration Hold Function - Helps prevent respiratory motion interference during CT imaging and surgical procedures, with configurable start delay and hold duration.

Veterinary Anaesthesia Super Hub – Practical Design Enhancements

The Veta 5 Plus supports a flexible workstation layout with options for: Monitor bracket, Cable management, Bain system, O₂ concentrator tray.
