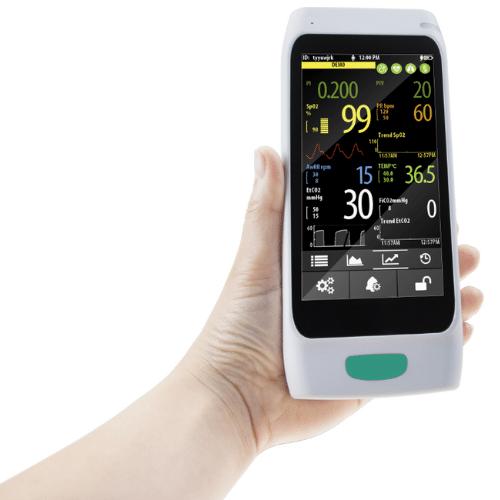

TM-24-M Bluetooth Capnograph Pulse Oximeter with Temperature

Simple, clear, and easy-to-read capnography and pulse oximetry, literally at your fingertips. The compact, hand-held, touchscreen TM-24-M delivers fast and accurate mainstream capnography, pulse oximetry, and temperature monitoring.

The TM-24-M is designed to overcome common device limitations, including calibration requirements, high service costs, and water secretion or condensation build-up typically associated with sidestream technologies. It is particularly effective for patients weighing less than 5 kg.

The mainstream CO₂ analyser is factory calibrated and requires no integration procedures or associated costs - simply plug in and begin measuring.

All the data you need: the TM-24-M is a comprehensive monitor displaying EtCO₂, FiCO₂, SpO₂, respiration rate, pulse rate, capnogram, plethysmogram, and patient temperature.

Key functions

Accurate and Reliable (Even for Patients Under 5 kg):
This system sets new standards in mainstream CO₂ monitoring, providing reliable, safe, and easy CO₂ measurement through direct monitoring with no time delay.

The TM-24-M features rapid warm-up and fast response times, allowing you to spend more time with the patient.

Hand-Held, Ergonomic, and Portable:
The monitor can be used as a hand-held device or mounted on its recharging base, giving you the flexibility to position it wherever suits you best.

The TM-24-M offers up to 5 hours of battery life away from the base charger and features an ergonomic grip for improved comfort and manoeuvrability during longer procedures.

Cost-Effective:
The monitor is cost-effective over its lifetime, requiring no routine maintenance or calibration.

Bluetooth and Internet Functionality:
The TM-24-M includes Bluetooth connectivity, enabling remote patient tracking and easy recording and storage of patient data.

The device also supports report printing.

Standard Package Includes

• Mainstream unit with CapnoSET™ CO₂ analyser
• CapnoSET™ airway adapter (adult/paediatric)
• Reusable SpO₂ sensor
• USB data cable
• Power supply (EU and UK plug)
• Silicone protective cover
• PC software
• Instruction manual on CD

Physical Specifications

• Dimensions: 80 × 45 × 180 mm
• Weight: < 2 kg (without accessories)
• Power Supply: AC 100–240 V (± 10%), 50/60 Hz ± 3 Hz, 60 VA
• Operating Temperature: 0 °C – 40 °C

Product Features

• Mainstream capnography providing exceptional accuracy for small patients (> 10 kg)
• Multi-mode display interface with information trend recording
• 5” high-resolution LCD colour touchscreen
• Dual visual and audible alarms
• Adjustable screen brightness, including night mode and blue-light filter for eye protection
• Patient information recording and equipment verification functions
• Dedicated base, rechargeable via USB, with Bluetooth and internet connectivity
• Ultra-light, compact, and portable design (see physical specifications for details)
• Equipped with a 6000 mA lithium battery (up to 5 hours of battery life)
