OP-System Surgical Tables

The OP-System range is designed for veterinary practices that require reliable stability, precise patient positioning, and workflow efficiency during both routine and advanced surgical procedures.

Designed for ophthalmology, orthopaedics, and general surgery, these tables offer robust construction, flexible configuration options, and ergonomic operation to support confident, controlled patient handling in the theatre environment.

Key Features:

Height Adjustment:

• Electrical height adjustment across the range:

  • 54–100 cm (general models).
  • 59–99 cm (special-surgery editions).
• Available as battery-operated or mains-powered (power cord).
• Operated via foot switch or hand switch depending on model.

• Allows surgery while seated, supporting surgeon comfort.

Table top options:

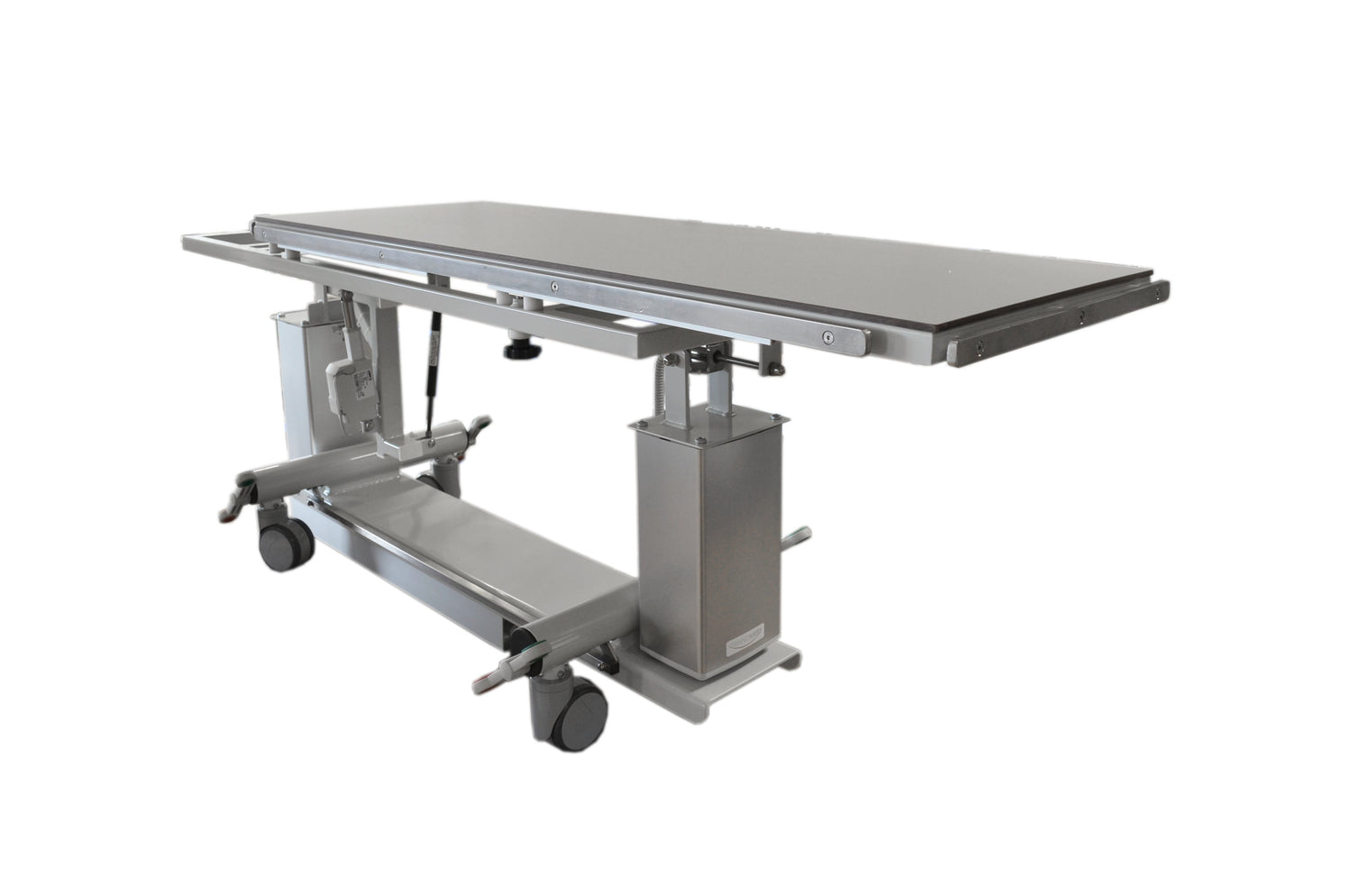

• Stainless steel or synthetic table top plate.
• Sizes include 130 × 60 cm with edge and integrated drainage system.

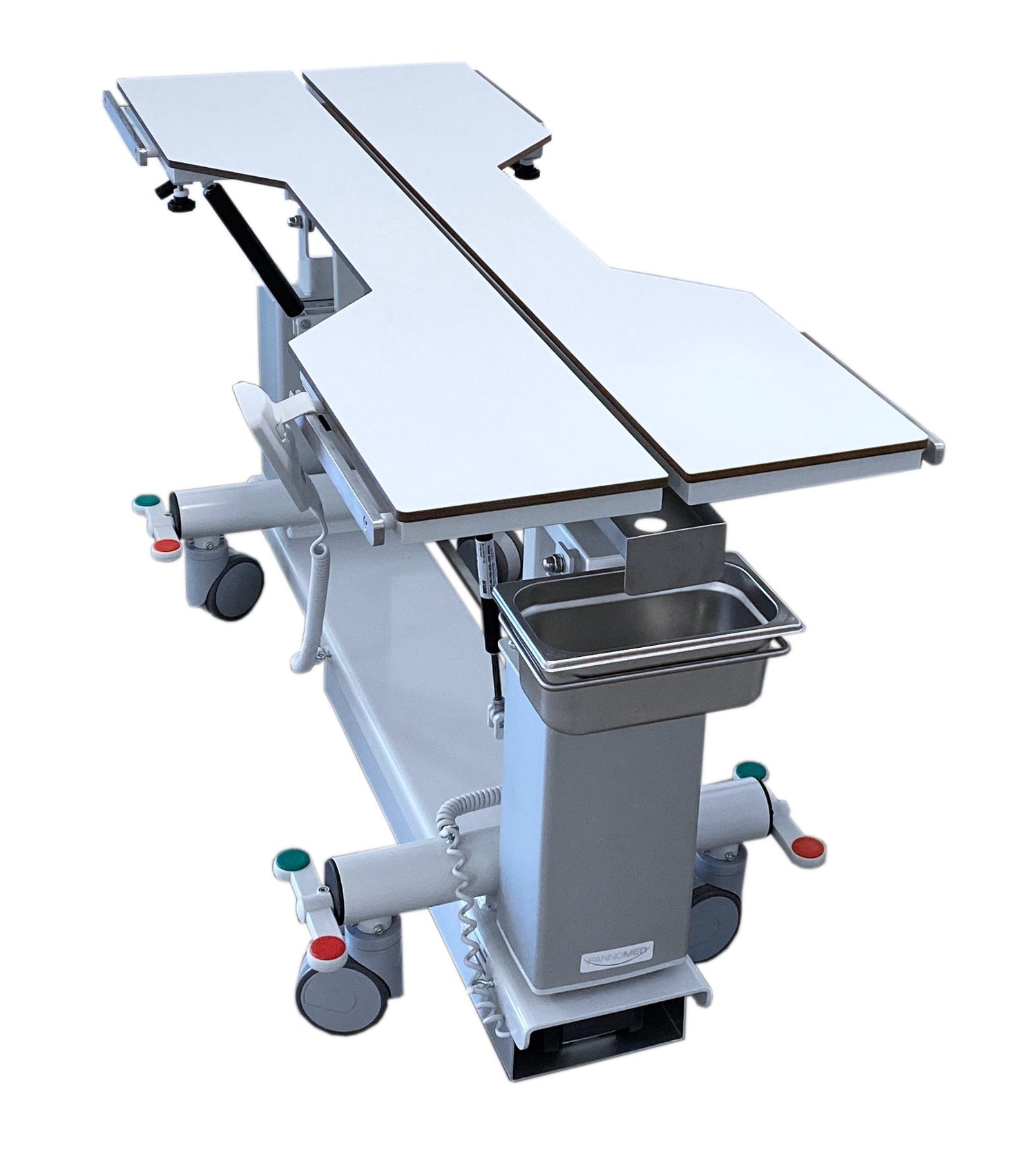

• Available in fixed, tilting, V-top, or X-top configurations.
• Continuous V-Top adjustment up to 90°, supported by gas springs.
• X-ray translucent plate for imaging-guided procedures.
• Special sliding-top version available for ophthalmology or c-bow x-ray applications.

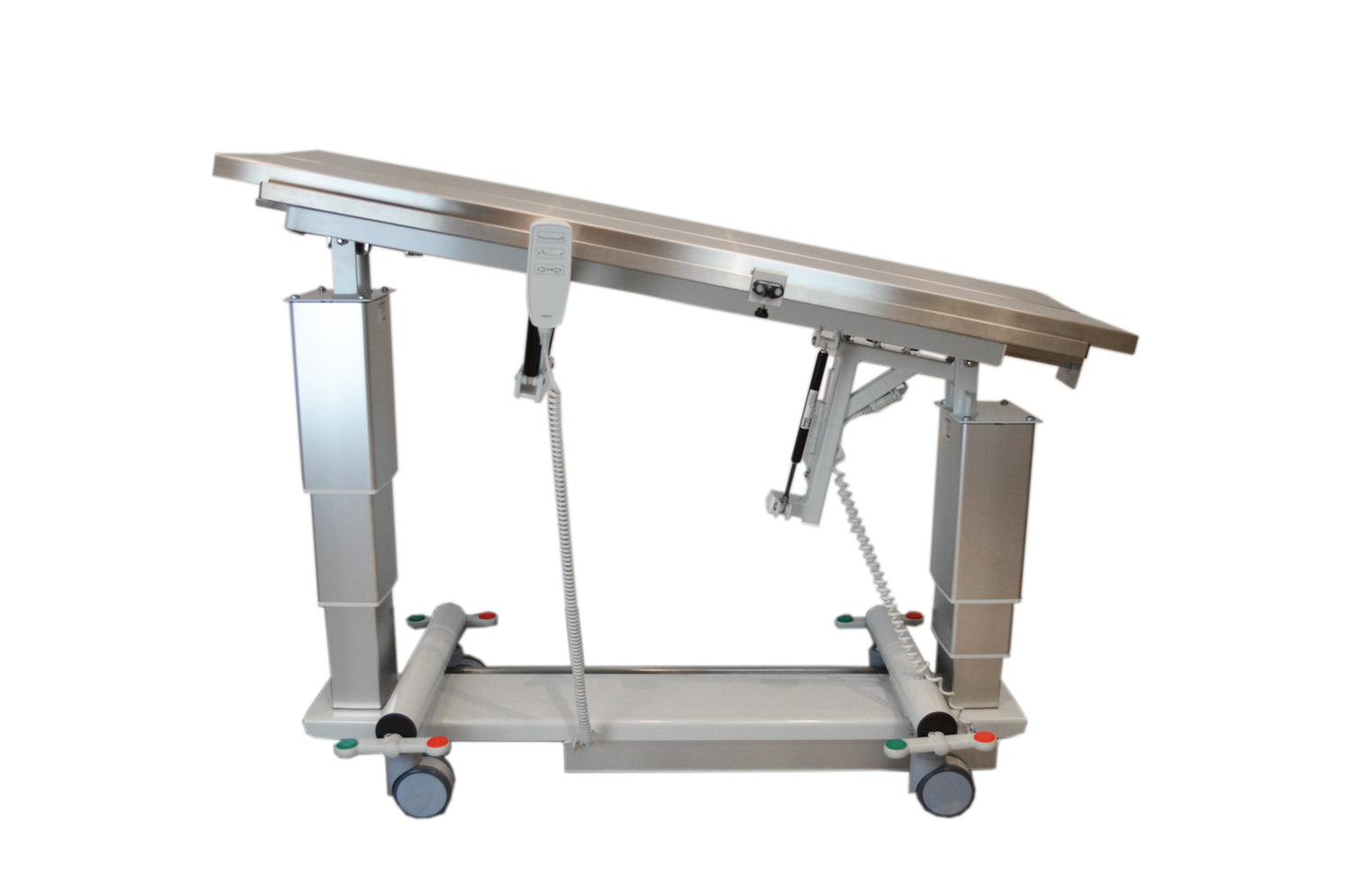

Tilting and positioning:

• Lateral electric tilt up to 40°.
• Longitudinal electric tilt up to 15° in both directions.
• Smooth, controlled adjustments for precise positioning.
• Supported by unpressurised gas springs for comfortable one-hand operation.

Mobility & Stability:

• High-stability frame in steel and aluminium.

• Powder-coated to RAL 7035 for durability and easy cleaning.

• Centrally lockable, directionally controlled double castors.


• Single-pedal central locking mechanism for quick theatre setup.

Patient Restraint & Accessories:

• Includes 14 tie-down cleats for safe, adaptable patient positioning.

• Additional quick-release cleats (4 pcs) included on sliding-top models.

• OP rails supplied:

  • 2 rails (fixed-top versions).
  • 4 rails (sliding-top versions).
• Optional joystick control available.

Included as Standard:

• OP-System table with castors.

• OP rails (dependant on model).

• Hand switch for height adjustment.
• Quick-release tie-down cleats.
