T-Lite PRO Ultrasound Scanner & Probes

Product Code: U400
Pack Size: 1

Please login to view your price

Description

Please note: The T-Lite PRO scanner and probes are sold separately. A compatible probe must be purchased separately for use with the scanner.

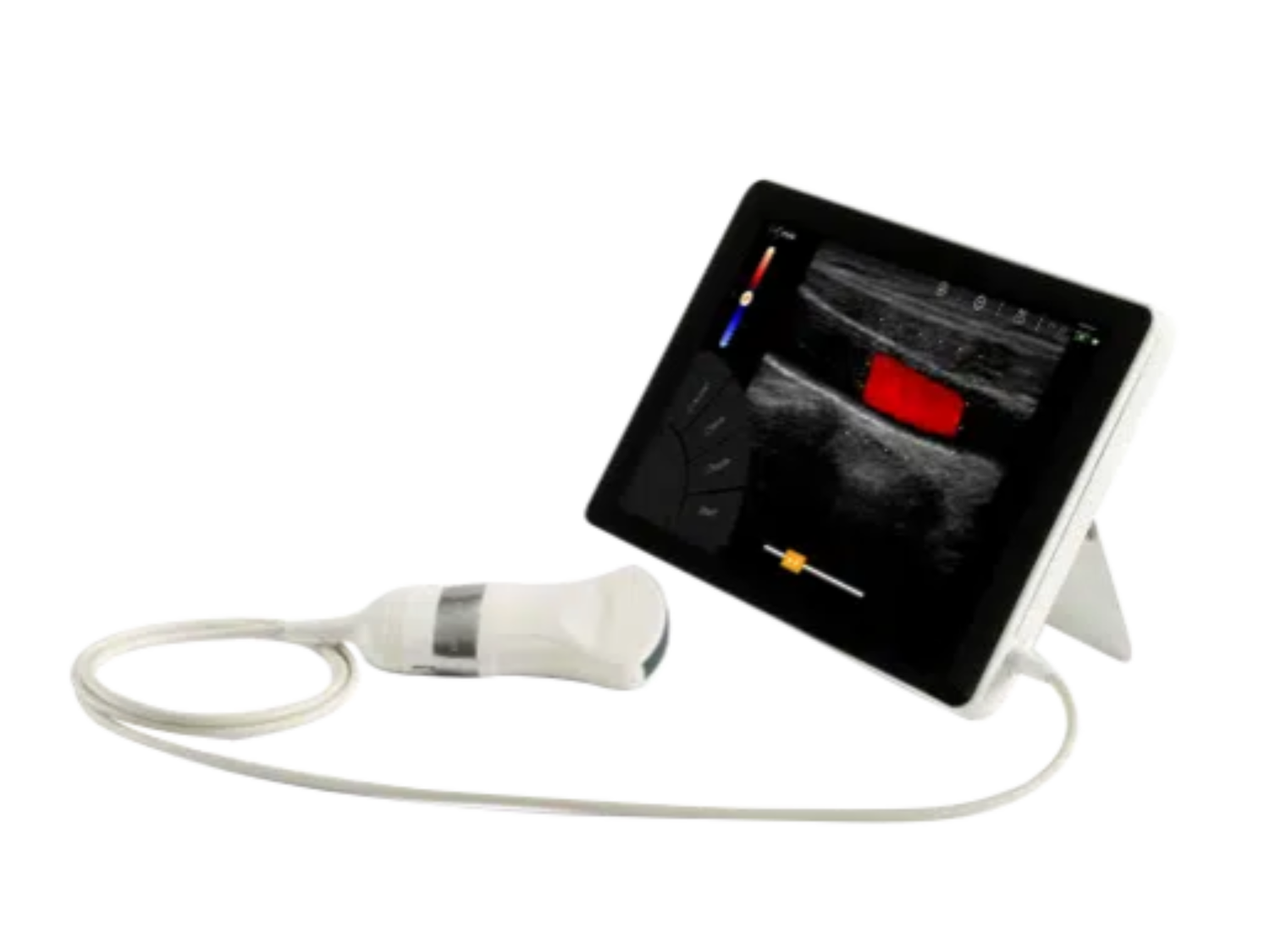

10" T-Lite PRO Ultrasound Scanner

With unprecedented quality of its images and extensive features, you have a high-performance ultrasound scanner within reach at all times. It is user-friendly, and can be switched on almost immediately, guaranteeing fast and safe patient treatment.

Retina+ images:

Make even the most difficult diagnoses easier with the help of marked tissue differentiation and contrast! An exclusive Sonoscanner adaptive image treatment, the result of 20 years of image processing R&D.

OSD Lightening Touch Screen:

Get the clearest images, for all conditions, on the optimized full HD 1100+ Lumen display.

Very high frame rate:

The latest generation 10nm Beamformer 820 Pro processor integrated into T-Lite PRO guarantees a 3x higher High Frequency frame rate and an enhanced real-time image.

Unique ActiveProbe technology:

T-Lite PRO's ultra-light Full HD probes incorporate proprietary image optimization technology, recognised by 3 Sonoscanner patents. You get a lighter, more compact probe with unbeatable ergonomics.

All the features you've been waiting for:

Get all the Doppler modes on your T-Lite PRO:

  • CFM
  • PW
  • PDI
  • CW
  • TDI
  • TCD

A complete ultrasound in your pocket at all times, for all your diagnoses.

Automated patient reporting:

Automated patient report editing with a private cloud and a report bank. Save precious consultation time and focus on diagnosing patients!

T-Lite PRO has all the probes you need for all medical applications. It's also designed to support you and adapt to your needs.

The ultra portable T-Lite PRO ultrasound scanner has been designed with the best medical specialists in each field, to offer you the image quality, features and measurements that you need. Combining Doppler HD images and automatic measurements, T-Lite PRO is a unique, advanced and user-friendly diagnostic tool.

T-Lite PRO is the only ultrasound scanner of its type to offer 11 interchangeable electronic probes using a unique probe connector system.

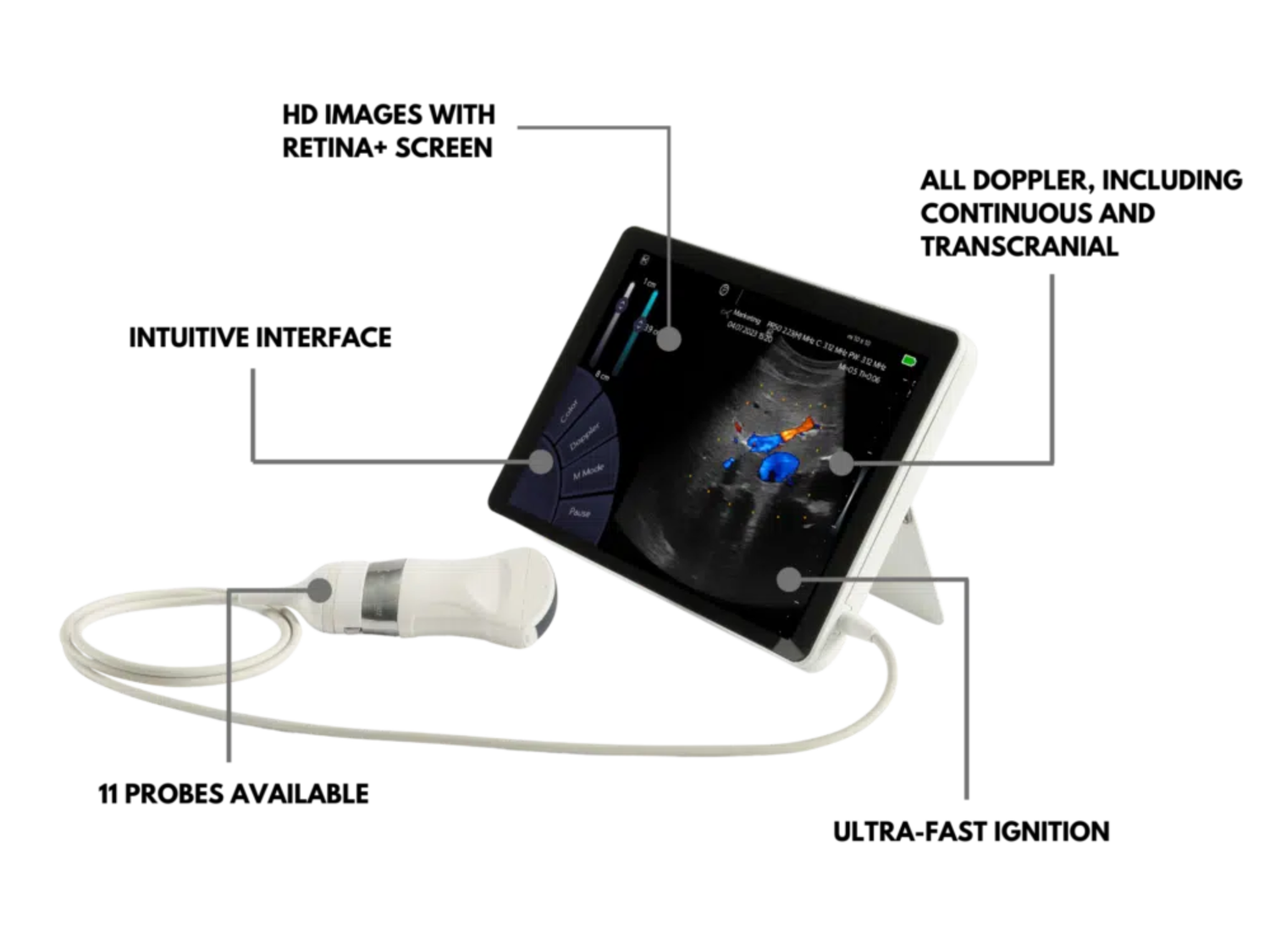

Full Features:
  • 10″ HD Color Touchscreen
  • Retina+ Image Quality
  • Automatic measurements and image optimization powered by AI
  • All Doppler modes including continuous and transcranial
  • 1 kg
  • 3 hours of battery life
  • Instant startup: 10 seconds
  • Cloud storage and automatic reporting
Included with T-Lite PRO:
  • Warranty+ Extension for up to 5 years warranty
  • Cardio App Cardio Package with CW and TCD
  • Auto EF Ejection Fraction by AI
  • Bladder App Bladder App for automatic Bladder Volume
  • Flow App Flow app for Automatic Flow Computing
  • VHF Proc. Very High Frequency >18Mhz Processing
  • Case Dedicated travel case
Dimensions and Weight:
  • System dimension: 253mm x 174mm
  • Thickness: 19mm
  • System weight: 1kg
Display:
  • Flat pad full touch screen display
  • Screen: 10.1 inch (Diagonal) LED monitor
  • Resolution: 1900 x 1200 pixels or higher
  • Fast boot-up: 10" approx.
Battery:
  • Built-in Rechargeable battery
  • Support operation for 8 hours back to back scanning
Imaging Capacities:
  • B-mode imaging
  • M-mode imaging
  • Colour flow doppler imaging
  • Pulse wave doppler imaging
  • Continuous wave doppler imaging
  • Power doppler imaging
  • Tissue doppler imaging
  • Tissue harmonic imaging
  • Trapezoidal imaging
  • Compound imaging
  • Speckle reduction exclusive imaging
  • Needle enhancement imaging
OB measurement on device:
  • FL
  • BPD
  • nHC
  • AC
  • GA
  • EFW
  • Fetal Heart Rate
Bladder measurement on device:
  • Auto-volume 2D
  • Auto 3D
  • Manual
Cardio Measurement on device:
  • E, E', A, A', E/E', E/A
  • VTI
  • EF
  • HR

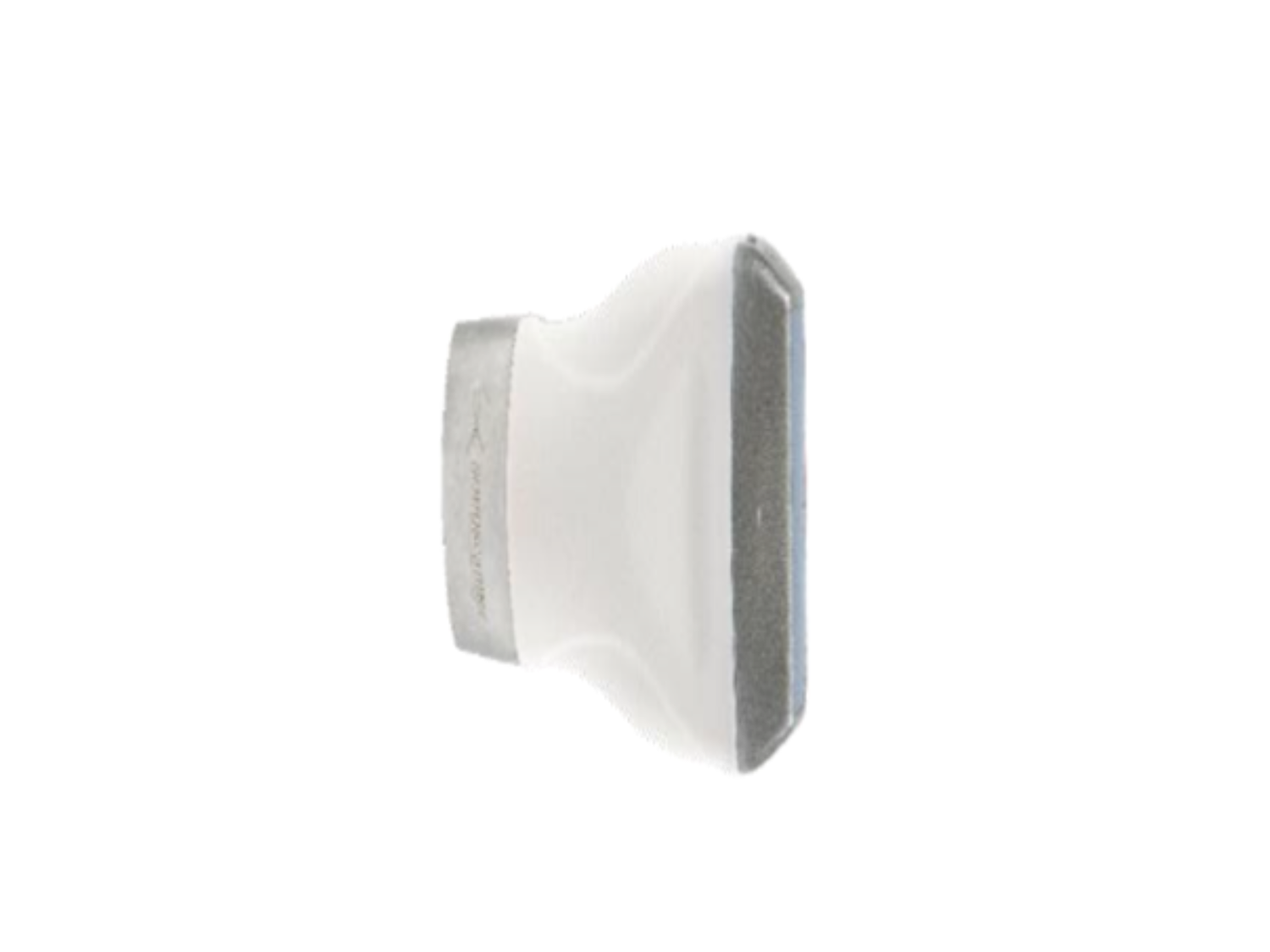

Linear Probe Access, 5–12.5 MHz

Linear array high frequency probe:
  • Broadband Probe with automatic frequency adjustment for optimal imaging
  • Probe Geometry: 50mm
  • Number of Elements: 128
  • Imaging depth: up to 7 cm
Speciality:
  • Small parts
  • Vascular
  • Anaesthesia
  • MSK

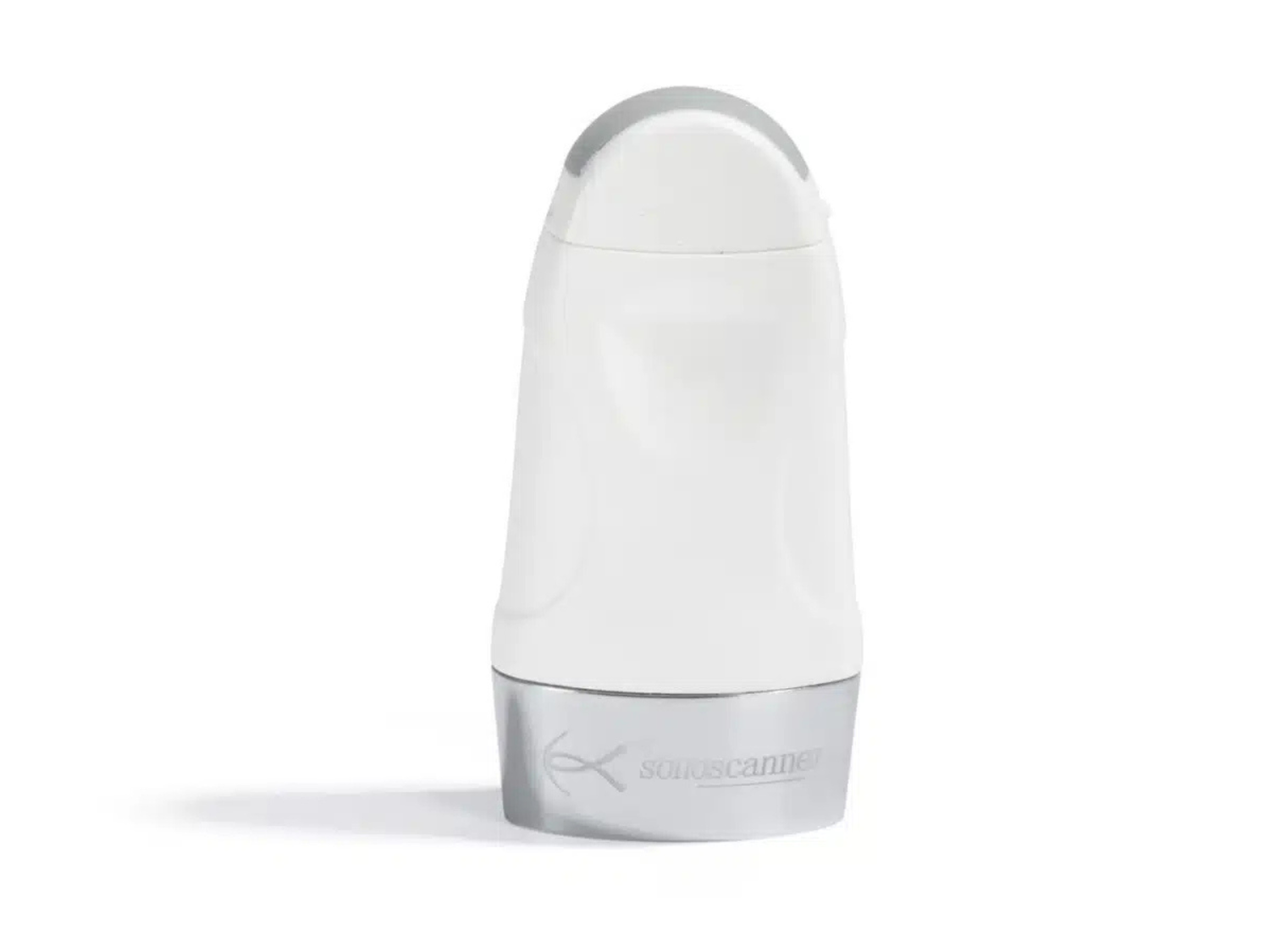

Microconvex Probe, 4–9 MHz

Speciality:
  • Abdomen
  • Obsetrics
  • Gynaecology
  • Anaesthesia
  • Vascular

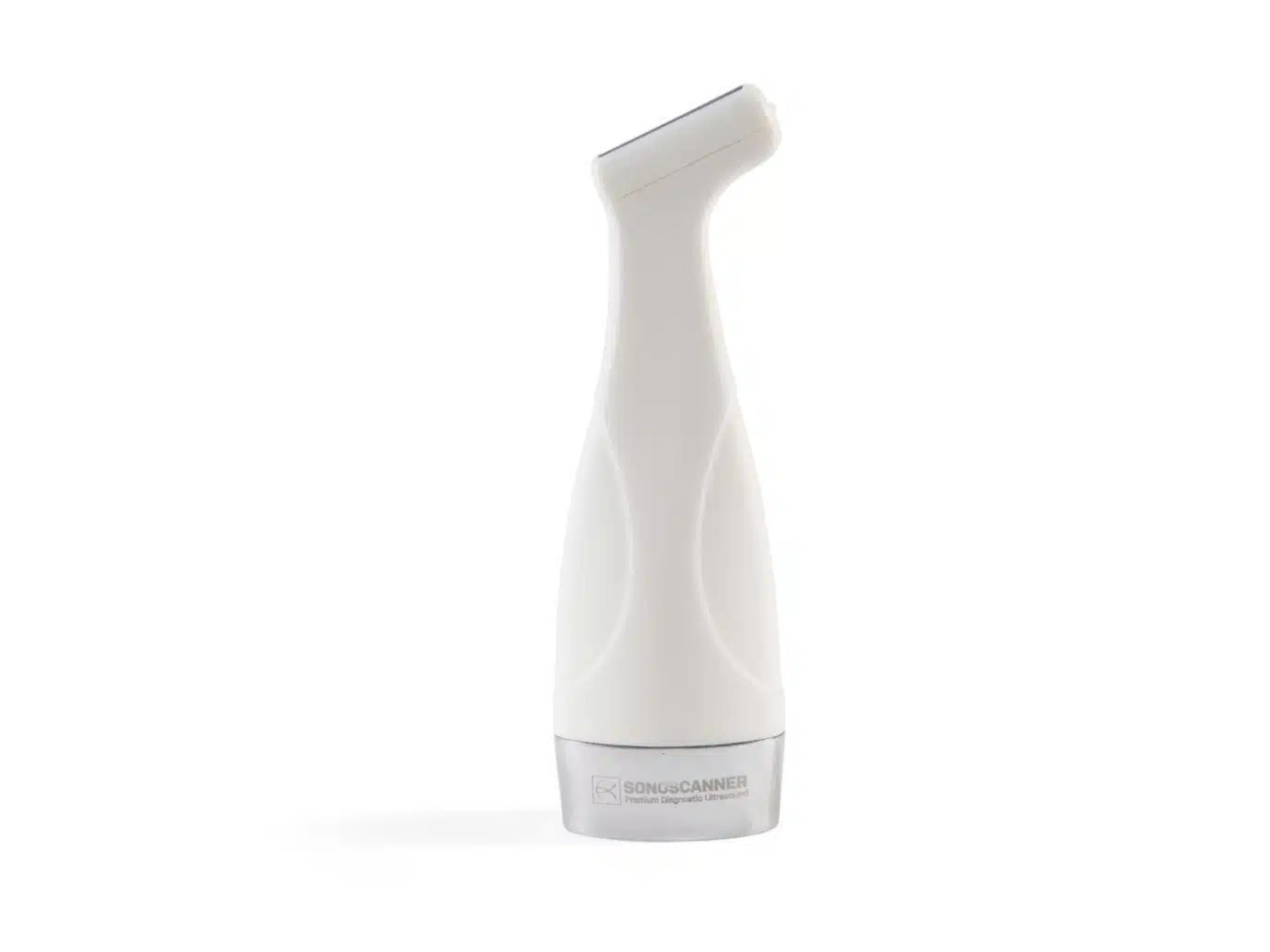

Hockey Stick Linear Probe, 10–18 MHz

Broadband Probe with automatic frequency adjustment for optimal imaging with depth change.

  • Probe Geometry: 25mm
  • Number of Elements: 128
  • Imaging depth: up to 5cm
Speciality:
  • MSK
  • Anaesthesia
  • Pediatric
