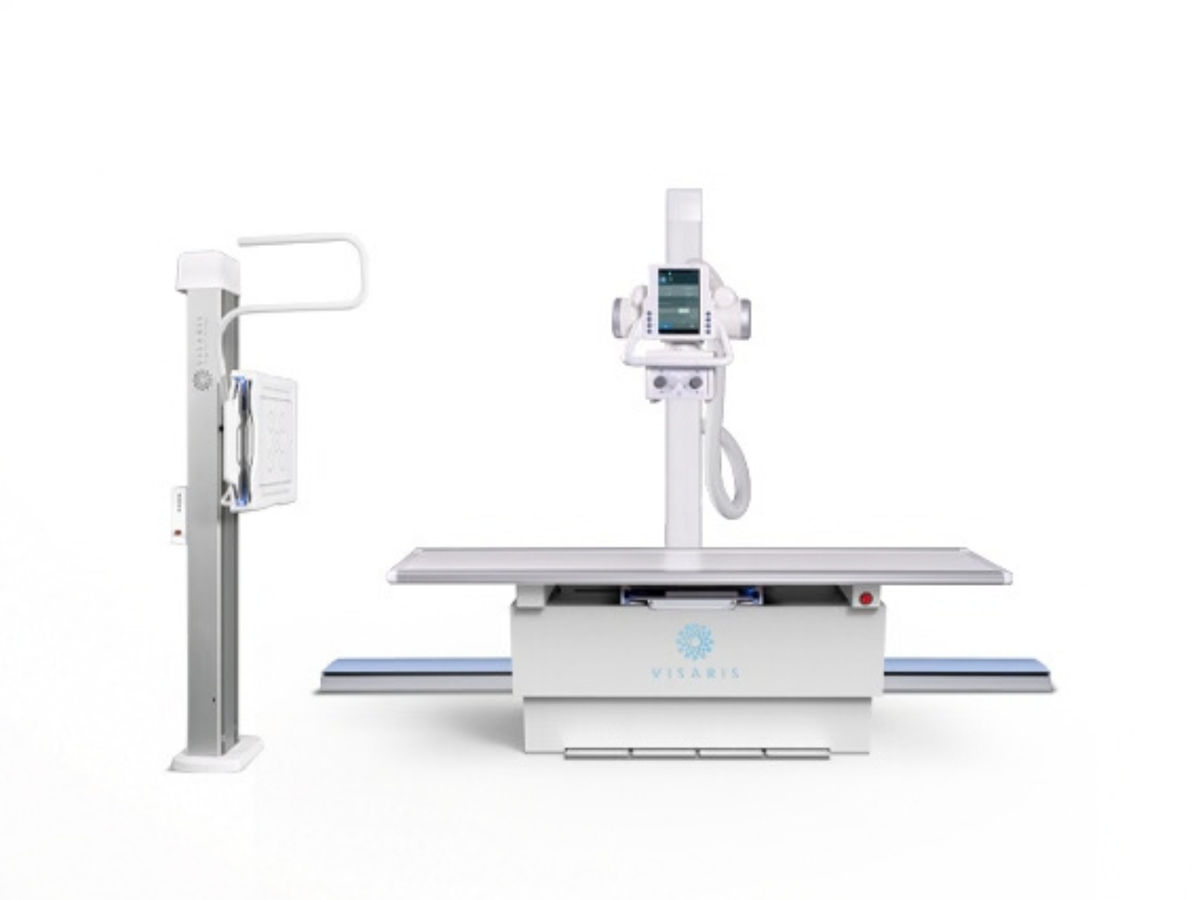

Vision V Floor Mounted Vet X-Ray System with DR Imaging

A complete floor mounted radiography room for busy veterinary practices

The Vision V brings tube stand, four-way patient table, generator and digital imaging together in a single integrated system. It's built for practices doing high radiographic throughput - referral centres, equine and small animal hospitals, and multi-vet clinics that need consistent image quality across a wide range of patient sizes.

Positioning that follows the patient

The floor mounted tube stand runs on 240 cm floor rails with 155 cm of vertical manual travel, ±12.5 cm lateral adjustment and ±90° column rotation. Tube rotation on the horizontal axis reaches ±150°, so you can move from table work to horizontal beam and standing studies without repositioning the patient.

Control at the tube head

A 10.1" touchscreen console mounted directly on the tube head puts generator settings, worklist management, procedure selection and collimation adjustment where you're already standing. Acquired images display on the console for an immediate check, along with system state, exposure parameters and error reporting — so you know whether you've got the study before you move the patient.

Four-way floating table

The floating table top measures 230 x 80.6 cm at a fixed 75 cm working height, with ±45.5 cm longitudinal and ±13 cm transverse travel and a 300 kg weight capacity. The Smart Bucky unit takes the 1717 wireless detector with automatic grid type detection and LED indication, with 50 cm of Bucky travel.

40kW or 50kW power

Choose the 50kW three-phase generator or the 40kW single-phase version. Both deliver 10–630 mA across 40–150 kV with exposure times from 1 ms to 10,000 ms, paired with a 300 kHu fast radiography tube for short exposures on panting or unsedated patients. Supplied with a manual LED collimator, 12 m HV cables and a 48 x 44 cm aluminium grid (10:1, 215 LPI, 110 cm focal distance). A motorised collimator is available as an option.

AVANSE DR imaging

The AVANSE system uses a 1717 caesium iodide flat panel detector with 139 µm pixel size and 16-bit A/D conversion, driven by a high performance PC and 23" full HD monitor. VXS radiography integration handles acquisition, processing and study management.

Specifications

Floor Mounted Tube Stand:

Tube-Side System Console:

"4 Way" Patient Table:

Vision X-Ray Power Pack:

AVANSE DR Imaging System:
