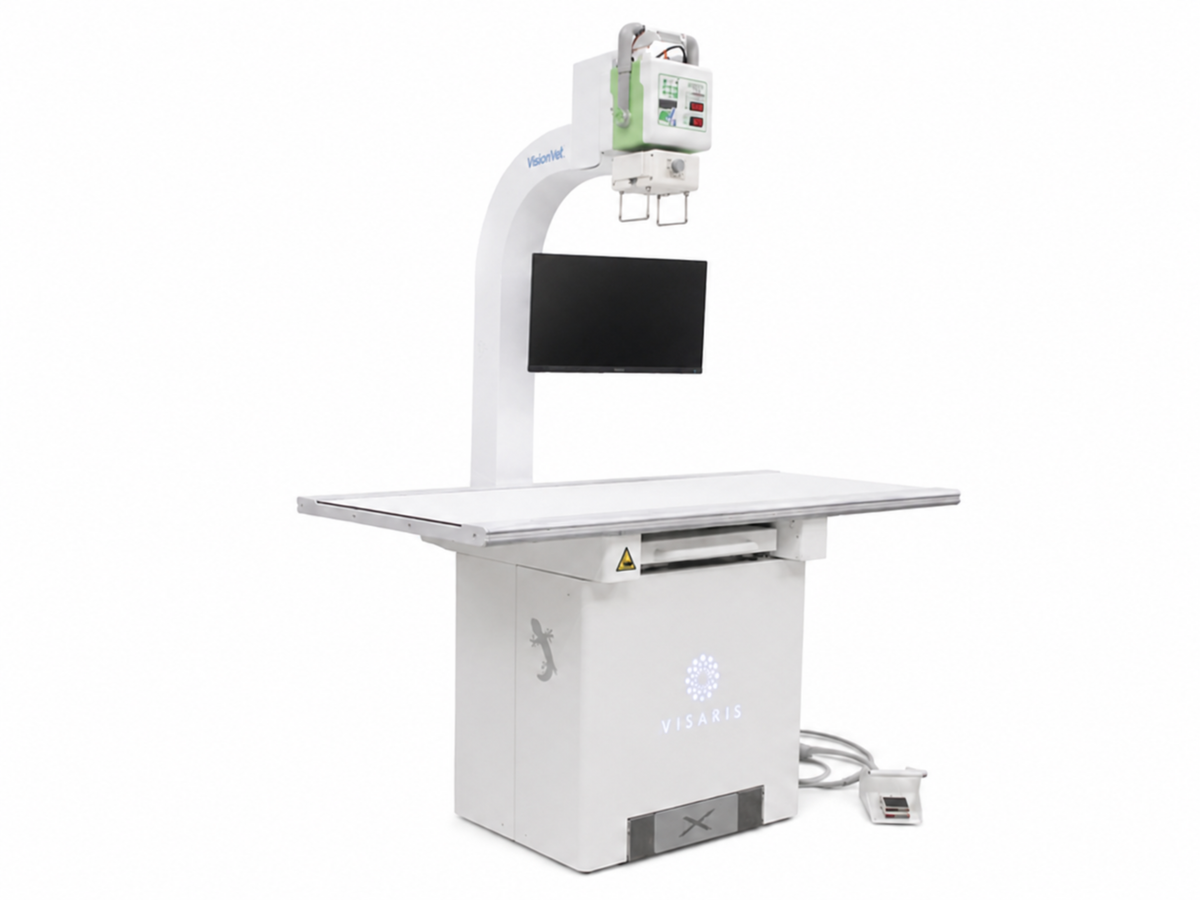

Vision Vet DR Vet System

Complete Digital X-Ray Solution for Veterinary Practices

The Vision Vet DR is a complete digital radiography system designed specifically for veterinary practices, combining an integrated X-ray generator, high-performance CsI flat panel detector, radiolucent floating table and advanced imaging workstation within one streamlined system.

Using the latest DR imaging technology, Vision Vet DR delivers high-quality digital images with excellent sharpness, contrast and anatomical detail, helping veterinary teams achieve greater diagnostic confidence while maintaining an efficient clinical workflow.

Its high-sensitivity flat panel detector supports lower-dose imaging, helping to reduce time spent in the X-ray beam while producing diagnostic-quality images on screen within seconds. This allows positioning to be assessed immediately and, where necessary, repeat exposures to be completed quickly while the patient remains on the table.

With an intuitive imaging console, anatomy-based exposure settings and advanced image processing, Vision Vet DR has been designed to make digital radiography straightforward for everyday veterinary use.

Key Features

• Complete integrated DR system combining generator, detector, electronics and PC
• High-performance CsI flat panel detector for excellent image quality and sensitivity
• Radiolucent floating table top measuring 1500 x 700 mm
• Longitudinal table movement of ±200 mm
• Transversal table movement of ±100 mm
• Fixed 100 cm SID
• Diagnostic-quality images available on screen within seconds
• Anatomy-dependent exposure and image processing through APR
• Exposure controls available both on the unit and through the imaging console
• Advanced image post-processing, annotation and measurement tools
• Comprehensive DICOM connectivity for integration with compatible imaging and PACS environments
• Designed for straightforward installation, arriving pre-aligned
• Remote system support capability

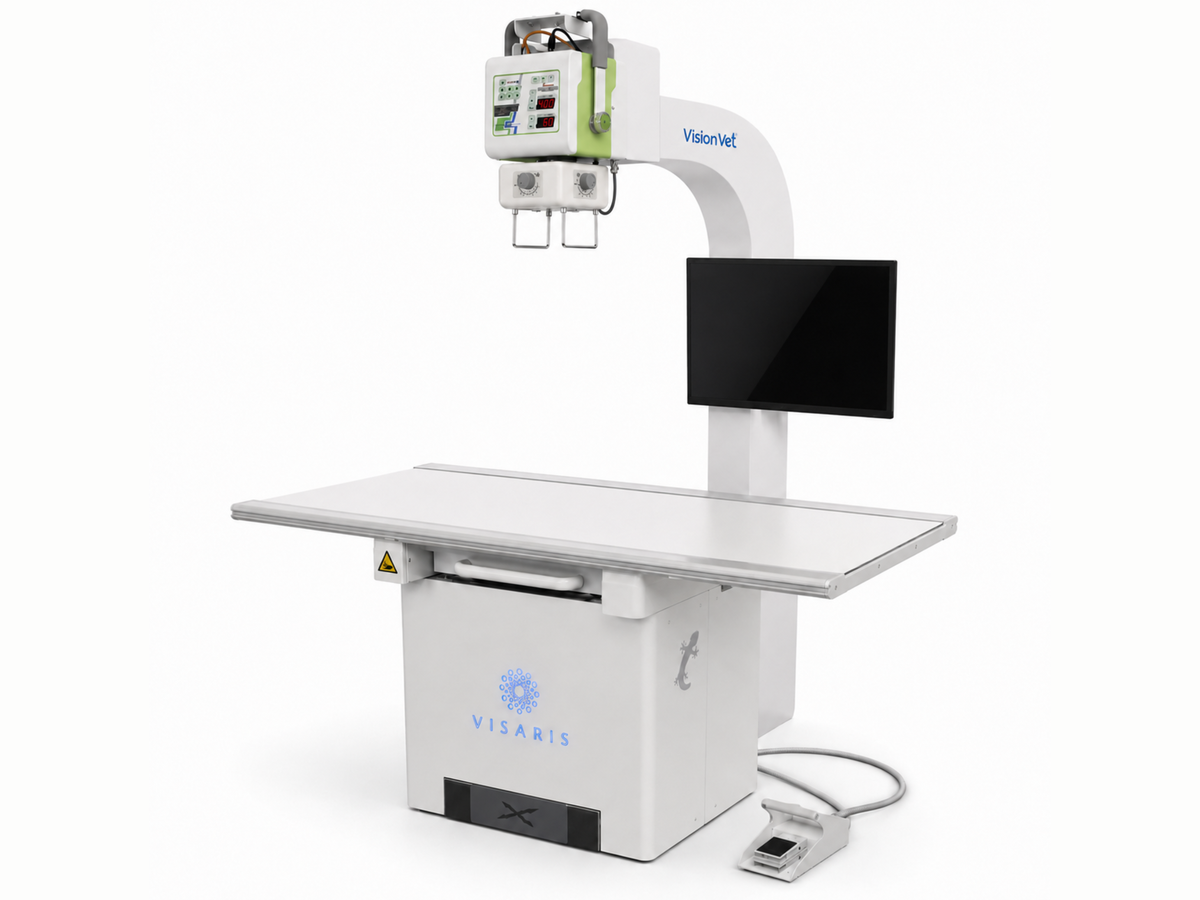

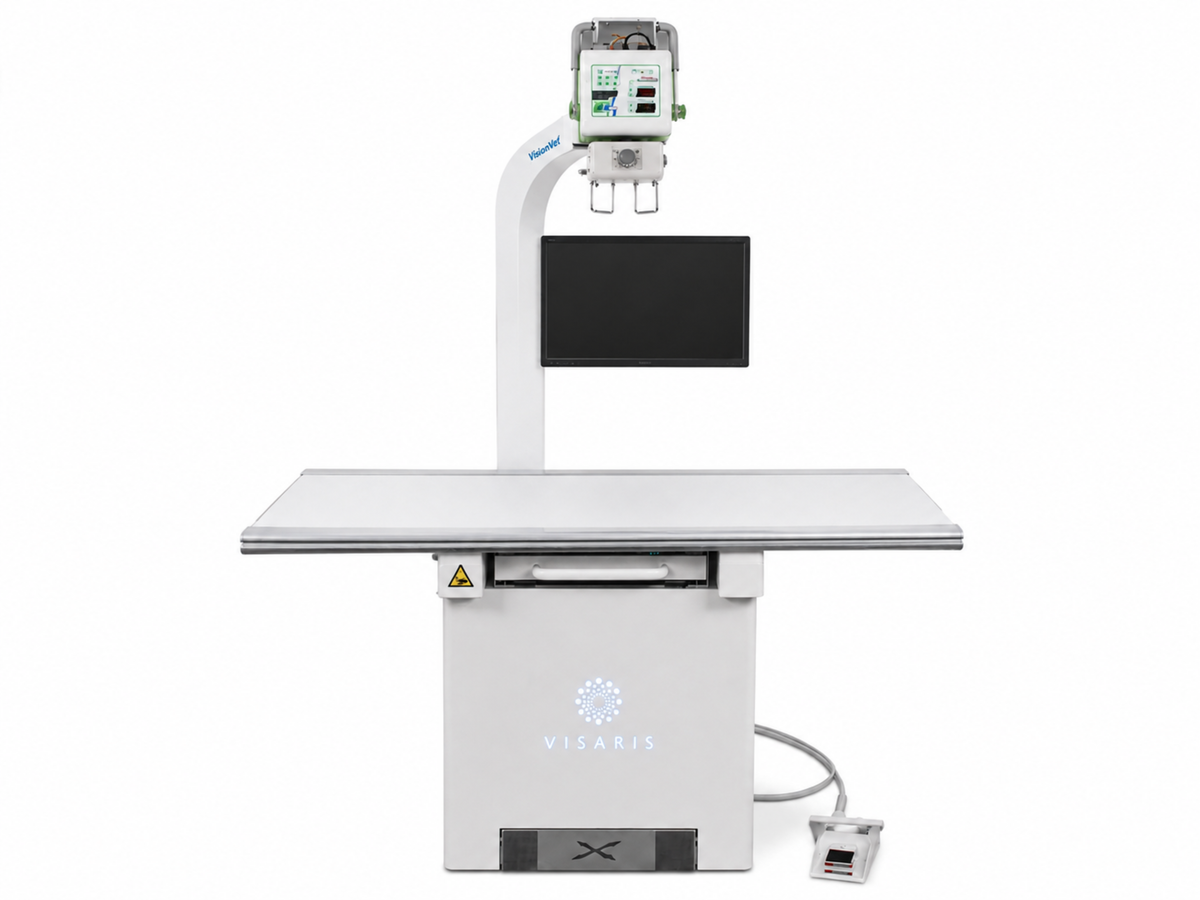

High-Performance X-Ray Stand

The Vision Vet DR stand has been designed to provide a practical and efficient platform for veterinary radiography.

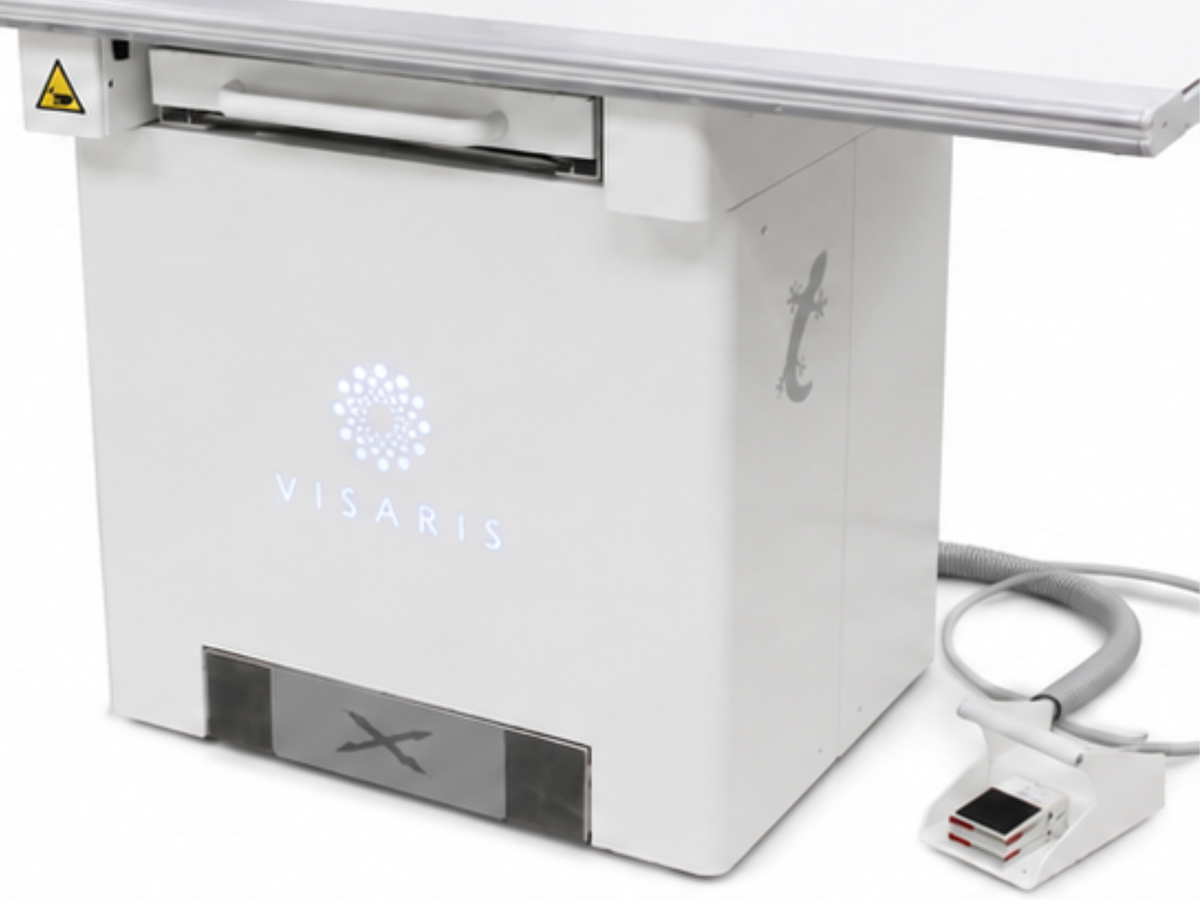

The 1500 x 700 mm radiolucent floating table top provides longitudinal movement of ±200 mm and transversal movement of ±100 mm, helping users position patients accurately without unnecessary repositioning.

The system features a fixed 100 cm source-to-image distance and can be configured with integrated generator, detector, electronics and PC components for a clean, consolidated installation.

X-Ray Source

• 3.2 kW generator
• 220 V AC line
• X-ray range: 40–100/25 kVp
• mAs range: 0.4–100/25 steps
• Unlimited APR
• Integrated radiography tube
• 20 kHU tube capacity
• 1.2 mm focal spot
• Manual collimator
• Exposure control from both the X-ray unit and imaging console

High-Performance CsI Detector

Vision Vet DR incorporates a full-size fixed 17 x 17 inch CsI digital detector, providing high-resolution image acquisition for veterinary applications.

The high-sensitivity detector technology supports excellent image quality while helping to reduce the radiation dose required for image acquisition.

Detector Specifications

• Full-size fixed 17 x 17 inch digital detector
• CsI detector technology
• 139 μm pixel pitch
• 16-bit conversion
• Detector power supply included
• Detector synchronisation
• Power supply and data cabling included

Avanse Vet Imaging Console

The integrated Avanse Vet Imaging Console provides a complete environment for managing veterinary radiography examinations, image acquisition, processing and distribution.

Powered by a latest-generation multicore PC and supplied with a 24-inch Full HD colour monitor, the console gives veterinary teams immediate access to acquired images and the tools required to review and optimise them.

The system includes anatomy-dependent image processing and APR functionality, helping users apply appropriate exposure and processing settings consistently across different examinations.

Imaging and Workflow Features

• Integrated latest-generation multicore PC
• 24-inch Full HD colour monitor
• DICOM Modality Worklist
• Animal entry and patient management
• Interactive examination worklist
• Integrated image acquisition
• Advanced image post-processing and manipulation
• Anatomy-dependent image processing
• APR exposure settings
• Image annotation and measurement tools
• DICOM MPPS
• Local image storage
• DICOM compression
• DICOM PACS communication
• DICOM CD burning and distribution
• DICOM Viewer included on each CD
• DICOM and PostScript printing

Faster Digital Workflow

With images available on screen within seconds of exposure, Vision Vet DR helps streamline the radiography process from acquisition through to review.

Users can quickly identify positioning issues and perform repeat exposures where required without unnecessarily extending the examination. Digital images can also be distributed to compatible remote viewing stations through the Visaris 360 imaging platform, supporting efficient image review and collaboration.

System Configuration and Support

Vision Vet DR includes the Avanse service and set-up environment, providing tools for system configuration, calibration, quality assurance and ongoing administration.

Available functionality includes:

• APR administration
• Imaging configuration
• User administration
• DICOM connection administration
• Detector calibration module
• Quality assurance module
• X-ray journal
• Remote system support via TeamViewer

The system arrives pre-aligned to help simplify installation and commissioning within the veterinary practice.
